Description

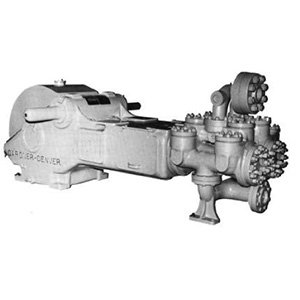

| Replacement parts for the Gardner Denver 5″ x 10″ FC FXD Duplex Mud Pump | ||
| Gardner Denver 5″ x 10″ FC FXD Fluid End Rebuild Kit | ||
| Qty. | Description | Part No. |
| 2 | Liner Chrome | PPGD 1EF45650C |
| 2 | Liner | PPGD 1EF45650 |
| 4 | Liner Packing | PPGD 4EF519 |
| 2 | Lantern Ring | PPGD FC957 |
| 2 | Head Gasket | PPGD 25T40 |
| 2 | Piston | PPGD 202TBB045A |
| 2 | Piston Rubber Kit | PPGD TBB76011 |
| 2 | Piston Rod | PPGD 5FD183 |
| 2 | Piston Rod Chrome | PPGD 5FD183C |
| 2 | Junk Ring | PPGD BC317 |
| 2 | Packing | PPGD 60BH2 |
| 8 | Valve Cover Gasket | PPGD 25AL36 |
| 8 | Valve Spring | PPGD 78D22 |
| 8 | Valve Standard w/Rubber Insert | PPGD 11EF206A |
| 8 | Valve Standard Insert | PPGD 5EF452 |
| 8 | Valve Standard Seat | PPGD 4PA39 |
| Gardner Denver 5″ x 10″ FC FXD Oil Stop Head | ||
| Qty. | Description | Part No. |
| 2 | Oil Stop Head | PPGD FXD495 |
| 4 | Stud, Oil Stop Head | PPGD 79A69 |
| 4 | Nut, Oil Stop Head Stud | PPGD 50B5 |
| 2 | Gland, Oil Stop Head | PPGD PXD238 |
| 2 | Packing, Oil Stop Head | PPGD 60BG26 |
| 2 | Washer, Oil Stop Head | PPGD BC318 |
| 2 | Gasket, Oil Stop Head | PPGD 25C974 |
| Gardner Denver 5″ x 10″ FC FXD Gear End JackShaft | ||
| Qty. | Description | Part No. |
| 1 | JackShaft | PPGD FXD371 |
| 2 | Sleeve‐Shaft | PPGD FXD289 |
| 2 | Seal‐Oil, Bearing Housing | PPGD 60G63 |
| 4 | Spacer, Bearing | PPGD FXD376 |
| 2 | Bearing, JackShaft | PPGD 12W6 |
| 2 | Housing‐Bearing | PPGD 1FXD368 |
| 2 | Spacer‐Bearing | PPGD FXD376 |
| 4 | Gasket, Housing & Retaining Plate | PPGD 25C1085 |
| 2 | Plate‐Bearing Retaining | PPGD 3FXD370 |
| 12 | Screw, Housing & Retaining Plate | PPGD 75A43 |
| 4 | Screw, Shaft Extension Cover | PPGD 75A192 |
| 1 | Cover‐Shaft Extension | PPGD 200FXD490 |
| 1 | Key, JackShaft | PPGD 35B167 |
| 2 | Seal‐Oil, Bearing Retaining Plate | PPGD 60G221 |
| 2 | Fitting‐Lube | PPGD 40E5 |
| Gardner Denver 5″ x 10″ FC FXD Gear End Eccentric Shaft | ||
| Qty. | Description | Part No. |
| 1 | Shaft‐Eccentric | PPGD FXD367 |
| 1 | Key, Eccentric Shaft | PPGD 35C68 |
| 1 | Eccentric | PPGD FXD255 |
| 2 | Sleeve‐Shaft | PPGD 23AUX18 |
| 2 | Seal‐Oil | PPGD 60G17 |
| 2 | Bearing, Eccentric Shaft | PPGD 12C34 |
| 2 | Shim, Bearing Cover Plate | PPGD 77B22 |
| 12 | Screw, Bearing Cover Plate | PPGD 75A18 |
| 2 | Plate‐Bearing Cover | PPGD FXD366 |
| 1 | Gasket, Bearing Cover Plate | PPGD 25C1084 |
| 2 | Fitting‐Lube, Bearing CVR Plate | PPGD 40E5 |
| Gardner Denver 5″ x 10″ FC FXD Gear End Connecting Rod Crosshead | ||
| Qty. | Description | Part No. |
| 2 | ASM Connecting Rod | PPGD FXD417 |
| 2 | Bushing (Eccentric End) | PPGD FXD421 |
| 2 | Bushing (Crosshead End) | PPGD FXD229 |
| 2 | Crosshead | PPGD FXD175 |
| 2 | Pin‐Crosshead | PPGD FXD189 |
| 2 | Plate‐Retainer | PPGD FXD281 |
| 4 | Screw (1.25″ LG) Retainer Plate | PPGD 75B11 |
| 4 | Screw 1.5″ Retainer Plate | PPGD 75B10 |
| 48″ | Wire | PPGD 97A29 |
| Gardner Denver 5″ x 10″ FC FXD Gear End Frame | ||
| Qty. | Description | Part No. |
| 1 | ASM Frame | PPGD FXD172A |
| 2 | Plug‐SQHD Pipe, Oil Drain | PPGD 64A6 |
| 2 | Elbow‐Pipe Street, Oil Level | PPGD 64D4 |
| 2 | Plug‐SQHD Pipe, Oil Level | PPGD 64AA4 |
| 1 | Hood | PPGD 200FXD053 |
| 110″ | Gasket, Hood | PPGD 2009457 |
| 12 | Screw, Hood | PPGD 75AA1 |
| 1 | Cover‐Filler | PPGD FXX880 |
| 2 | Plug‐SQHD Pipe, Crosshead Oil | PPGD 64AA5 |
| 4 | Stud, Crosshead Inspect Plate | PPGD 79A6 |
| 4 | Nut, Crosshead Insp. Pl. Stud | PPGD 50B5 |
| 2 | Plate‐Inspection | PPGD 200FXD052 |
| 2 | Gasket, Crosshead INS. Plate | PPGD 25C1083 |
| 4 | Screw, Crosshead Ins. Plate | PPGD 75AA1 |
| 4 | Stud, Plate Inspection | PPGD 79A438 |
| 4 | Nut, Plate Inspection Stud | PPGD 50B5 |
