Description
HHF-1300/1600 drilling mud pump is one of the most important equipments for rig for middle and deep depth well drilling. The parts and components of this drilling pump are designed and manufactured according to API 7K and relevant standards. It can satisfy the technological requirements for well drilling.

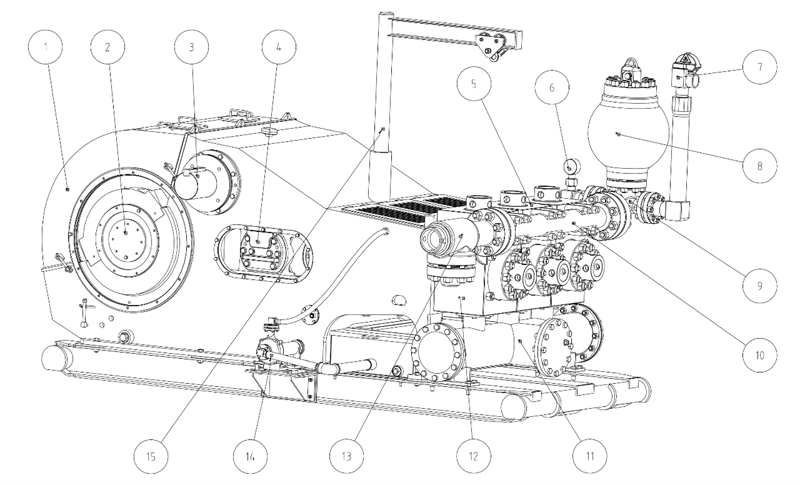

HHF-1300/1600 drilling pump is a horizontal, triplex, single action piston pump. As an important equipment for drilling operation, it feeds and circulates the high-pressure drilling fluid, which flushes the well bottom and crushes rocks, cools and lubricates drill- bit, and then carries cuttings (rock chips) return to the surface.
Each pump has a serial number, customers need to point out specially the model and serial number when they order spare parts and inquire about the equipment.
| GH3161-26.00 | Special tools |
| GH3161-26.01.00 | Crowbar, cylinder head |
| GH3161-26.02.00 | Hoisting tool for liner |
| GH3161-26.03 | Socket wrench 2-3/8″ |
| GH3161-26.04 | Socket wrench 2″ |
| GH3161-26.05 | Socket wrench 3-5/8″ |
| GH3161-26.06 | Socket wrench 1-1/2″ |
| GH3161-26.07 | Socket wrench 1-5/8″ |
| GH3161-26.08 | Extension rod 19-5/8″ |
| GH3161-26.09 | Extension rod 8″ |
| GH3161-26.10 | Joint, 1″ |
| GH3161-26.11 | Extension rod 24″ |
| JB/T7334-94 | Chain block, SH1/2 |
| SYB-2 | Manual oil pump, 0-63MPa(0-9150psi) |
| GH3161-26.12.00 | Hydraulic valve-puller |
| GH3161-26.13 | Intermediate taper sleeve |
| GH3161-26.14 | Pressing sleeve |
| GH3161-26.15.00 | Socket wrench, long |
| GH3161-26.16 | Bolt, 1-8UNC-2Ax160 |
| Allen wrench, 5/8″ | |
| GH3161-26.17.00 | Flashboard puller |
| GH3161-26.18 | Socket wrench, 1-11/16″ |
| GH3161-27.11.00 | Charging hose assembly, dampener |
| GH3161-02.08.00 | Crankshaft, hollow |
| GH3161-29.00 | Spare parts with mud pump |
| GH3161-03.11 | Oil seal, 9.125″x10.375″x0.625″ |
| GH3161-04.06 | Oil seal ring |
| GH3161-04.07 | Double lip oil seal, 5″x6.25″x0.625″ |
| GH3161-05.08 | Seal ring, cylinder head |
| GH3161-05.11.03 | Rubber, valve |
| GH3161-05.12 | Seal ring, valve pot cover |
| GH3161-05.14 | Seal ring, liner |
| GH3161-05.24.01.02.00 | Rubber, 6-1/2″ |
| GH3161-05.31 | Seal ring, piston |
| GH3161-05.33.01 | Rubber cell(suction dampener) |
| GH3161-09 | Seal washer |
| GH3161-22.04(A) | Seal ring, R35(steel) |
| GH3161-22.06.12 | Seal ring, R27(steel) |
| GH3161-23 | Seal ring, R44(steel) |
| GH3161-27.01 | Seal ring, R39(steel) |
| GH3161-27.03.00 | Air cell(bladder), discharge dampener |
| GH3161-28.03.00 | Piston assembly, relief valve |
| GH3161-28.06 | Bumper pad |
| GH3161-28.11 | Shear pin |
| GB/T3452.1-1992 | O ring, 190×3.55G |
| GB/T3452.1-1992 | O ring, 95×5.3G |
| GB/T3452.1-1992 | O ring, 125×7.0G |
| GB/T3452.1-1992 | O ring, 160×7.0G |
| GB/T3452.1-1992 | O ring, 165×7.0G |
| GB/T3452.1-1992 | O ring, 190×7.0G |
| GB/T3452.1-1992 | O ring, 200×7.0G |
| GB/T3452.1-1992 | O ring, 345×7.0G |
| GH3161-03.11 | Oil seal 9.125″x10.375″x0.625″ |
| GH3161-04.06 | Oil-seal ring |
| GH3161-04.07 | Double lip seal ring, 5″x6.25″x0.625″ |
| GH3161-04.12 | Intermediate extension rod |
| GH3161-05.04.00 | Flashboard assembly |
| GH3161-05.08 | Seal ring, cylinder head |
| GH3161-05.10 | Spring, valve |
| GH3161-05.11.00 | Valve assembly, API 7# |
| GH3161-05.11.03 | Rubber, valve |
| GH3161-05.12 | Seal ring, valve pot cover |
| GH3161-05.14 | Seal ring, Liner |
| GH3161-05.15 | Abrasion proof disc(wear plate) |
| GH3161-05.18 | Piston rod |
| GH3161-05.21 | Bi-metal liner 5-1/2″ |
| GH3161-05.21 | Bi-metal liner 6″ |
| GH3161-05.21 | Bi-metal liner 6-1/4″ |
| GH3161-05.21 | Bi-metal liner 6-1/2″ |
| GH3161-05.21 | Bi-metal liner 6-3/4″ |
| GH3161-05.21A | Liner, 7″ |
| GH3161-05.24.01.00 | Piston 5-1/2″ |
| GH3161-05.24.01.02.00 | Rubber |
| GH3161-05.24.02.00 | Piston 6″ |
| GH3161-05.24.02.02.00 | Rubber |
| GH3161-05.24.03.00 | Piston 6-1/4″ |
| GH3161-05.24.03.02.00 | Rubber |
| GH3161-05.24.04.00 | Piston 6-1/2″ |
| GH3161-05.24.04.02.00 | Rubber |
| GH3161-05.24.05.00 | Piston 6-3/4″ |
| GH3161-05.24.05.02.00 | Rubber |
| GH3161-05.24.06.00 | Piston 7″ |
| GH3161-05.24.06.02.00 | Rubber |
| GH3161-05.31 | Seal ring, Piston |
| GH3161-05.32.00 | Piston Nut |
| GH3161-05.33.01 | Rubber cell(suction dampener) |
| GH3161-27.03.00 | Rubber cell(discharge dampener) |
| GH3161-28.03.00 | Piston assembly(relief valve) |
| GH3161-28.06 | Bumper pad(relief valve) |
| GH3161-28.11 | Shear pin |
| GB/T3452.1-1992 | O ring, 190×3.55G |
| GB/T3452.1-1992 | O ring, 95×5.3G |
| GB/T3452.1-1992 | O ring, 125×7.0G |
| GB/T3452.1-1992 | O ring, 160×7.0G |
| GB/T3452.1-1992 | O ring, 165×7.0G |
| GB/T3452.1-1992 | O ring, 190×7.0G |
| GB/T3452.1-1992 | O ring, 200×7.0G |
| GB/T3452.1-1992 | O ring, 345×7.0G |
We supply mud pump parts for these popular pump models:
Honghua: HHF500, HHF800, HHF1000, HHF1300, HHF1600, HHF1600HL, HHF2200HL
